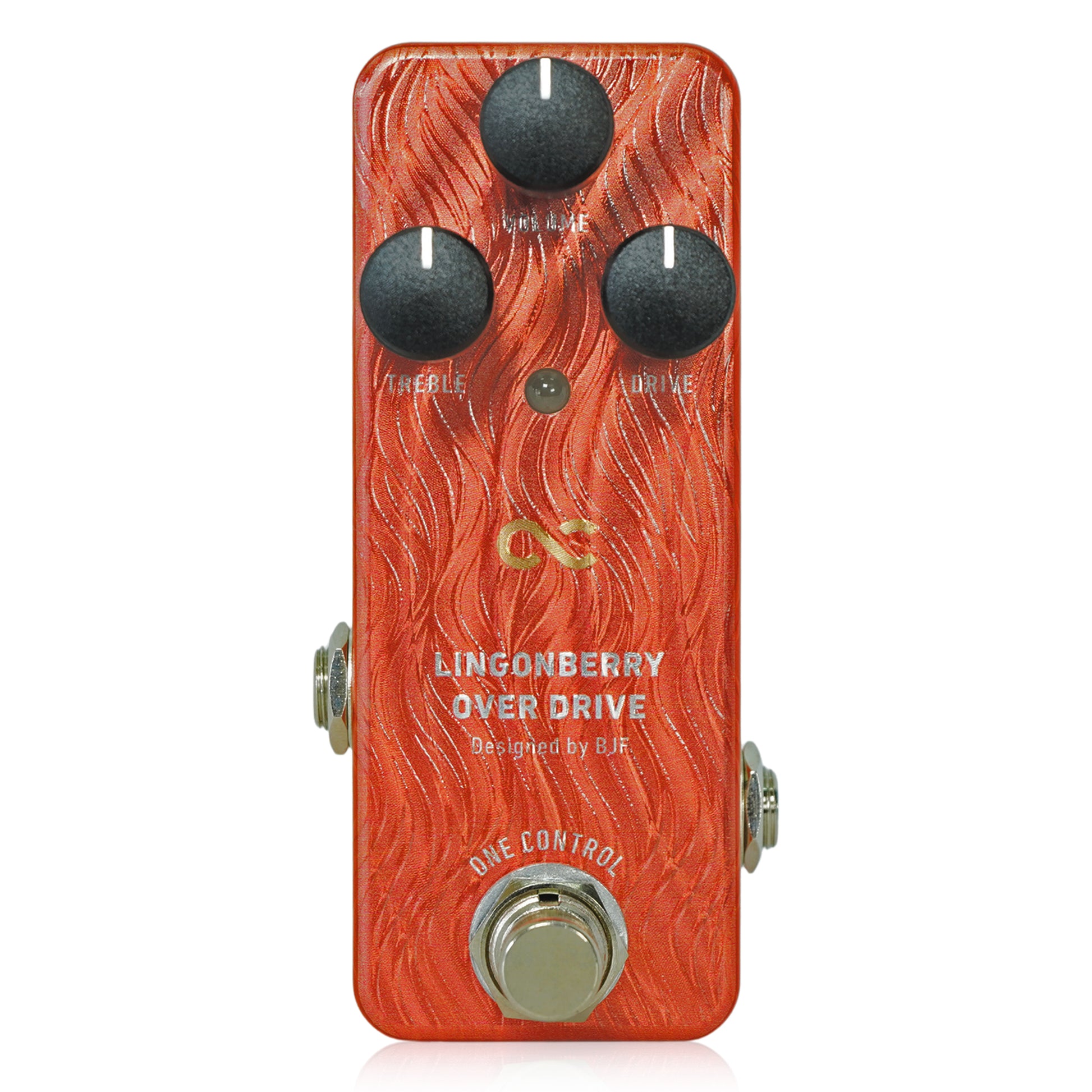

LINGONBERRY OVER DRIVE (OC-LBODn)

Features
The LINGONBERRY OVERDRIVE inherits the characteristics of the original Strawberry Red Overdrive, however, it produces a stronger distortion and a low cut trim pot has been installed. Additionally, lower-end frequencies are more predominant. In order to make these changes, BJF has reduced the signal necessary to obtain the perfect amount of distortion and compression.


Specifications
Input Impedance: 330K
Output impedance: 25K
Drive voltage: 9 V
Current consumption: 4 mA
S / N ratio: -86 dB
Size: 39 W x 100 D x 31 H mm (not including projections)
　　　　47 W x 100 D x 48 H mm (including projections)
Weight: Approximately 160 g
True-Bypass Switching
High Quality Aluminum Enclosure
Power: 9V Battery or Standard DC Power Supply


Bjorn's Description
It is safe to say that the Strawberry Overdrive hsa been and continues to be one of the best selling BJF Series FX pedals. For this reason, I decided to expand on this models success with two other models; The Cranberry and Lingonberry.

The LINGONBERRY OVERDRIVE is a higher gain version of the Strawberry Red Overdrive. In addition to having optimized control over lower gain sounds, the filtering has been altered to allow a bit more bite as well as a tighter sound. The player can adjust 3 characteristics:

Volume: Output volume
Treble: Allows to change the tone from 'soft' to 'slightly biting'
Drive: Sets the gain and distortion of the circuit.
Low: Trimmer switch that sets the low-end frequency response

- Bjorn Juhl
